Description

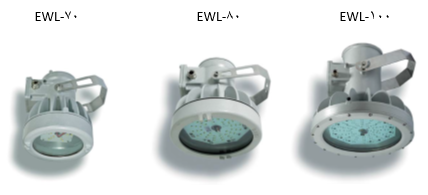

High bay lightingfixture with LED

EWL…

• Ex protection: Ex II 2GD Ex de IIC T5 Gb – Ex tb IIIC T100°C Db IP66
• Certificate: ITS 11 ATEX 17287
• Installation: zone 1 – 2 – 21 – 22

CONSTRUCTION

• N°18 LED for EWL-70, n°49 LED for EWL-80,
• n°98 LED for EWL-100 type Coll White, R4 group
• installed on the plate.
• Low copper content aluminium alloy body.
• Aluminium ring with tempered glass.
• Bolts and screws in stainless steel.
• Standard voltage 220-240 Vac for EWL-70,
• 100-240 Vac for EWL-80 and EWL-100.
• RAL 7035 epoxy coating.
• PLG2IB cap and REV2IB nickel-plated brass cable gland.
