Description

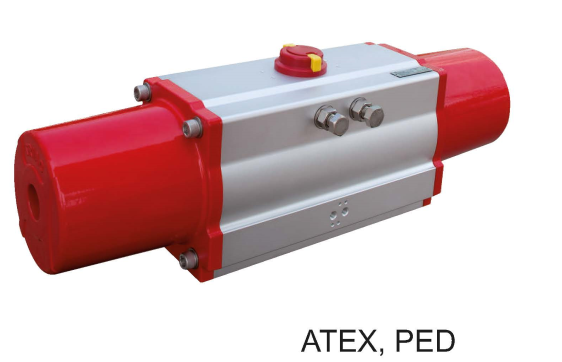

Pneumatic actuator HP-series

HP-211/HP-212

• Scotch yoke design
• Torque range : 1,507Nm~ 5,022Nm
• Single acting or Double acting
• Pressure range
  • Max working pressure : 10bar
• Temperature range
  • Standard : -20􀂍 ~ 80􀂍
  • Option : -35􀂍 ~ 80􀂍(low)
• -20􀂍 ~ 150􀂍(high)
• 90 Degree Standard adjustable -5􂁜~+5􂁜(travel stopper)
• All moving parts are lubricated at the factory
• for long-life cycle of the actuator
• Mounting
  • Top/Side : VDI/VDE 3845 NAMUR standard
  • Bottom : ISO 5211 standard
